Plate Padel Court
Precision engineering. Structural integrity.
Long-term performance.
At Unixpadel, we specialize in high-performance padel court solutions that meet and exceed international standards.
The Plate Padel Court is our most robust closed panel model, designed for maximum durability, visual harmony, and environmental resilience. Unlike traditional mesh systems, this premium model uses solid steel plate walls; as a result, it is ideal for high-wind areas, urban installations, and architecturally sensitive projects.
Moreover, we strictly adhere to the standards of the International Padel Federation (FIP), so our courts are always tournament-ready and built to perform.

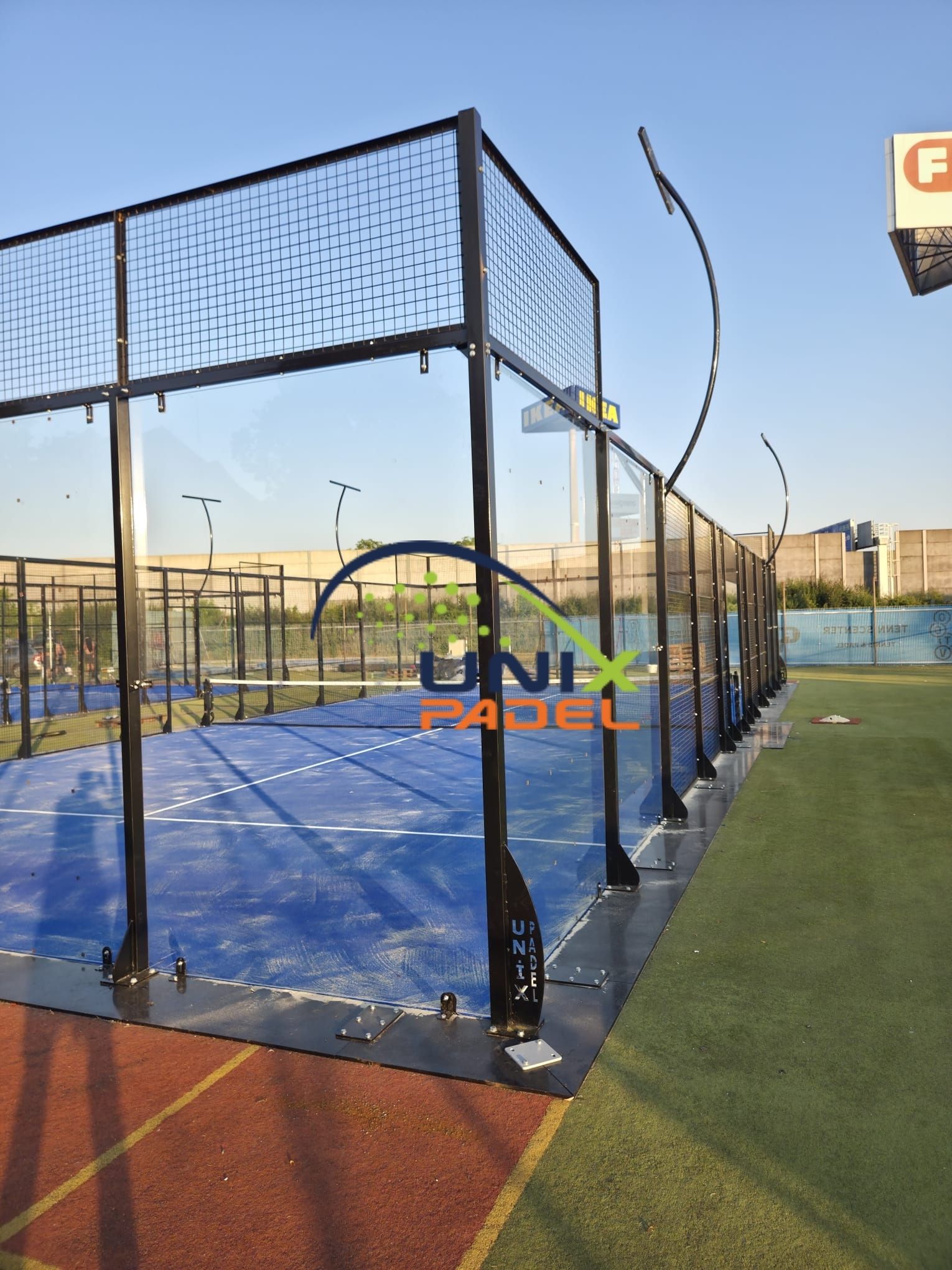

Easy installation on existing surfaces
You can install the Plate Padel Court directly on old tennis courts, futsal pitches or football fields — no new concrete foundations required. Consequently, it is an ideal solution for upgrading facilities, roof conversions, or repurposing underutilized sports spaces.
Technical Overview
Structural Overview
- Built from laser-cut pre-galvanized steel columns and crossbeams (>=3 mm).
- Additionally, anchor plates reinforce the frame for exceptional load-bearing capacity.
- Thanks to its modular design, assembly is rapid and transport is easy.
- As a result, the structure withstands dynamic loads such as wind and impacts.
Side Panels
- Solid steel sheet panels (typically 3 mm, customizable).
- We weld or bolt them directly to the frame; therefore, the structure stays perfectly rigid.
- Consequently, the panels cut wind penetration by up to 80%, which improves playability.
Glass Walls
- 10 mm or 12 mm tempered safety glass.
- Moreover, each panel carries padel-use certification and high-strength fasteners for impact absorption.
- Finally, polished edges ensure both player safety and visual clarity.
Performance Highlights
Wind load resistance
Thanks to its closed panel system, the court suits elevated installations (10+ meters) as well as coastal environments.
Noise reduction
In addition, the closed steel panels reduce external noise leakage by 30 to 40% compared to mesh fences.
Low maintenance
Furthermore, the rust-resistant structure requires only routine cleaning and periodic inspections.
Compliance and standards
- Dimensions (FIP Standard): First of all, the standard 20m x 10m court suits both amateur and professional play.
- Glass safety: In addition, all glass complies with the EN 12150-1 standard.
- Engineering: Furthermore, we provide wind load calculations in accordance with the EN 1991-1-4 standard.
Customization
- Full RAL color chart available.
- Additionally, we can engrave or print custom logos on the steel panels.
- As a result, the court blends easily into any brand identity.
International Certifications
Material standards
- CE Marking – EN 1090-1 for steel.
- Moreover, our production runs on TÜV-certified lines.
- Welding certificates: EN ISO 9606, EN 1090-2 EXC2, ISO 3438.
- Steel grades: S235JR / S275JR.
- Finally, we ensure full REACH and RoHS compliance.
Recommended applications
For instance, the Plate Padel Court is a perfect fit for:
- Rooftop sports facilities
- Coastal or wind-exposed outdoor courts
- Indoor and multisport complexes
- Residential or mixed-use developments
- Noise-sensitive environments
Technical support and engineering
Unixpadel provides comprehensive support for every project — for example:
- CAD files (DWG/DXF)
- Foundation and installation plans
- Wind load reports upon request
- On-site supervision and technical consultation
- Finally, every project includes warranty and post-installation support
